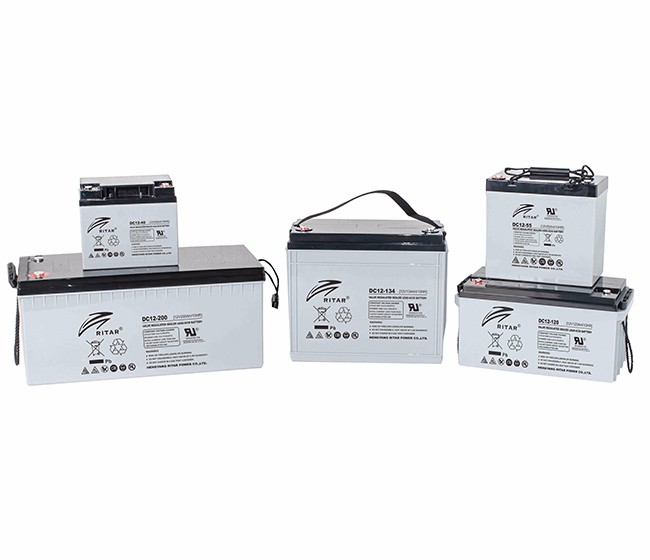

深循环系列铅酸蓄电池

额定电压2V/6V/12V

容量: 26Ah ~3000Ah



特别为频繁地循环放电使用而设计

100%DOD条件下达到300次以上循环

特殊板栅合金

优良的极板配方

适用于太阳/风能、UPS、电动车、高尔夫球车、电力、通信等领域


产品特性

DC系列深循环铅酸蓄电池,专门为频繁地循环放电使用而设计,使用特殊的板栅合金和优良的极板配方,使电池的循环使用寿命比普通备用电源系列的使用寿命高30%以上;主要用于太阳能/风能系统,高尔夫球车,电动轮椅等方面。

技术规格



电池型号额定电压            (V)额定容量电池尺寸端子选项
容量(Ah)小时率/终止电压长/mm宽/mm高/mm总高/mm
DC12-261226C20/1.75VPC166178125125F3(M5) / F13(M5)/T24(M5)
DC12-26S1226C20/1.75VPC165125174174F7(M8) / F11(M6)
DC12-28S1228C20/1.75VPC165125174174F7(M8) / F11(M6)
DC6-1806180C20/1.75VPC306168220227F12(M8)
DC6-2006200C20/1.75VPC322177.5226231F16(M8) / F14(M8)
DC6-2256225C20/1.75VPC322177.5226231F16(M8) / F14(M8)
DC6-225S6225C20/1.75VPC243187275275F14(M8)
DC12-401240C20/1.75VPC198166169169F4(M6) / F11(M6)
DC12-40A1240C20/1.75VPC198166169169F4(M6) / F11(M6)
DC12-501250C20/1.75VPC250160178183F11(M6) /F15(M6)
DC12-551255C20/1.75VPC229138211216F15(M6) / F11(M6)
DC12-55A1255C20/1.75VPC229138211216F15(M6) / F11(M6)
DC12-651265C20/1.75VPC350167182182F5(M8) / F11(M6)
DC12-801280C20/1.75VPC350167182182F5(M8) / F11(M6)
DC12-100S12100C20/1.75VPC306.5168.5210215F15(M6) / F12(M8)
DC12-100SA12100C20/1.75VPC306.5168.5210215F15(M6) / F12(M8)
DC12-10012100C20/1.75VPC328172215220F5(M8) / F12(M8)
DC12-100A12100C20/1.75VPC328172215220F5(M8) / F12(M8)

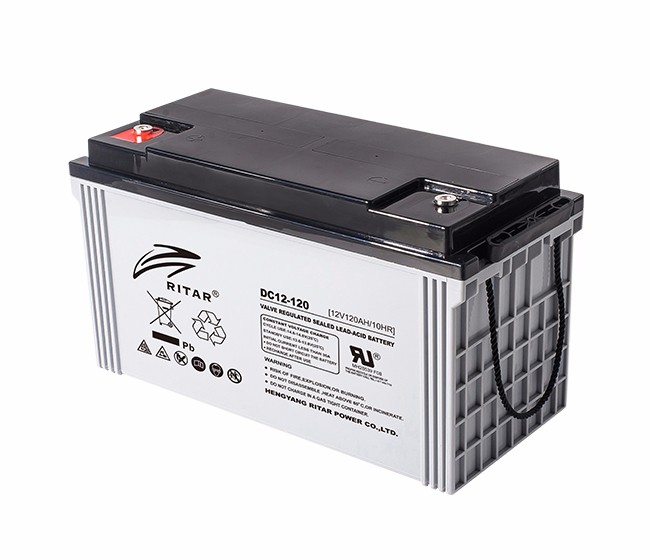

DC12-12012120C20/1.75VPC407177225225F5(M8) / F12(M8)
DC12-120A12120C20/1.75VPC407177225225F5(M8) / F12(M8)
DC12-120S12114C20/1.75VPC328172215220F5(M8) / F12(M8)
DC12-120SA12114C20/1.75VPC328172215220F5(M8) / F12(M8)
DC12-13412134C20/1.75VPC340173280287F5(M8) / F12(M8)
DC12-14512145C20/1.75VPC340173280287F5(M8) / F12(M8)
DC12-15012150C20/1.75VPC483170241241F5(M8) / F12(M8)
DC12-150A12150C20/1.75VPC483170241241F5(M8) / F12(M8)
DC12-16012160C20/1.75VPC532207214219F5(M8) / F12(M8)
DC12-160A12160C20/1.75VPC532207214219F5(M8) / F12(M8)
DC12-18012180C20/1.75VPC532207214219F16(M8) / F12(M8)
DC12-180A12180C20/1.75VPC532207214219F16(M8) / F12(M8)
DC12-19012190C20/1.75VPC532207214219F16(M8) / F12(M8)
DC12-190H12190C20/1.75VPC532207214219F16(M8) / F12(M8)
DC12-20012200C20/1.75VPC522240219224F16(M8) / F10(M8)
DC12-200A12200C20/1.75VPC522240219224F16(M8) / F10(M8)
DC12-22512225C20/1.75VPC522240219224F16(M8) / F10(M8)
DC12-23012230C20/1.75VPC521269204209F10(M8)
DC12-26012260C20/1.75VPC521268220225F14(M8)
DC12-260H12260C20/1.75VPC521268220225F14(M8)
DC2-2002200C10/1.80VPC170106330342F10(M8)
DC2-2502250C10/1.80VPC170106330342F10(M8)
DC2-3002300C10/1.80VPC170150330342F10(M8)
DC2-3502350C10/1.80VPC170150330342F10(M8)
DC2-4002400C10/1.80VPC196171330342F10(M8)
DC2-4502450C10/1.80VPC196171330342F10(M8)
DC2-5002500C10/1.80VPC241171330342F10(M8)
DC2-6002600C10/1.80VPC285171330342F10(M8)
DC2-6502650C10/1.80VPC285171330342F10(M8)
DC2-7502750C10/1.80VPC383171330342F10(M8)
DC2-8002800C10/1.80VPC383171330342F10(M8)
DC2-100021000C10/1.80VPC471171330342F10(M8)
DC2-120021200C10/1.80VPC471171330342F10(M8)
DC2-150021500C10/1.80VPC355337330342F10(M8)
DC2-180021800C10/1.80VPC355337330342F10(M8)
DC2-200022000C10/1.80VPC476337330342F10(M8)
DC2-250022500C10/1.80VPC476337330342F10(M8)
DC2-300023000C10/1.80VPC696340330342F10(M8)
FT12-55D1255C20/1.75VPC291106230230F11(M6)
FT12-90D1290C20/1.75VPC562114188188F6(M8)
FT12-100D12100C20/1.75VPC508110236236F14(M8)
FT12-100SD12100C20/1.75VPC410110286286F9(M8)
FT12-105D12105C20/1.75VPC508110236236F14(M8)/F8(M6)
FT12-110D12110C20/1.75VPC410110286286F9(M8)
FT12-150D12150C20/1.75VPC565110288288F9(M8)
FT12-160D12160C20/1.75VPC565110288288F9(M8)
FT12-160AD12160C20/1.75VPC565110288288F9(M8)
FT12-180D12180C20/1.75VPC560125316316F9(M8)
FT12-185D12185C20/1.75VPC560125316316F9(M8)
FT12-100LD12100C20/1.75VPC410110286286F9(M8)
FT12-150LD12150C20/1.75VPC565110288288F9(M8)
FT12-185LD12185C20/1.75VPC560125316316F9(M8)
